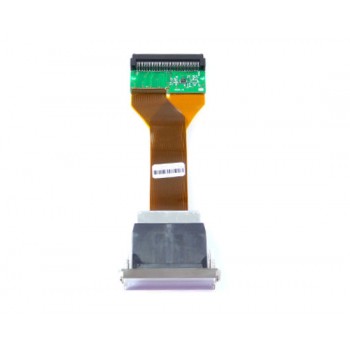

Ricoh GEN5 UV Printhead (Cable: 248mm) - MH5420

Ricoh GEN5 UV Printhead (Cable: 248mm) - MH5420

This GEN5 UV printhead is suitable for a range of UV, water and solvent printers (Ricoh part number N221414J / N221414T). It has a total of 1.280 nozzles. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is 248mm long in total (head body + cable + connectors). The head cable is 148 mm long. This printhead is the original Durst Alpha 190 / 330 printhead.

This printhead comes with the hose barbs which can easily be removed if needed.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Product Specifications

• Dimensions: 89 x 25 x 69 mm (excluding cables)
• Head materials: SST, Nickel alloy and Epoxy Adhesive
• Nozzle plate surface: Coated SST
• Number of nozzles: 4 x 320 nozzles
• Nozzle spacing: 0.1693 mm
• Nozzle density: up to 600 npi
• Piezo type: D33 Stacked PZT
• Temperature control: Integrated Heater and Thermistor
• Operator temperature range: Up to 80° C
• Native drop volume: 7 pl
• Drop volume range: 7 - 35 pl
• Drop velocity: 7 m/s
• Jetting frequency: Up to 60 kHZ
• Ink compatibility: UV Inks
• Life: 100 billion actuations per nozzle

Printer compatibility

• Agfa Jeti Mira MG2716 S/HS
• Agfa Jeti Mira MG2732 S/HS
• Agfa Jeti Tauro H2500
• Agfa Jeti Titan HS
• Agfa Jeti Titan S
• Akad NovaJet UV M6
• CET Color Q5-1000
• CET Color Q5-1000h
• CET Color Q5-250
• CET Color Q5-250h
• CET Color Q5-500
• CET Color Q5-500h
• Docan 1212 UV
• Docan FR3210
• Docan FRT3116
• Docan M10Docan M6
• Docan M8 Handtop HT1600UV HR4
• Handtop HT1610UV FR4
• Handtop HT2500UV HR8
• Handtop HT2512UV-D FR8
• Handtop HT3116UV FR8
• Handtop HT3200UV HG12
• Handtop HT3200UV HR8
• Durst Alpha 190
• Durst Alpha 330
