Ricoh GEN4 7-35PL Printhead - MH2420

Ricoh GEN4 7-35PL Printhead - MH2420

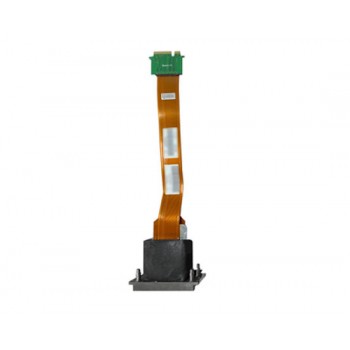

The Ricoh GEN4 MH2420 printhead is suitable for a range of aqueous, solvent and UV printers. This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty. This cable including the connector is 44 cm long. The version with short cable has been discontinued. The long cable version is used as an alternative. The printhead comes with hose barb ink inlet that can be removed in. case o-ring sealed ink inlet are required. This printhead corresponds to Ricoh part numbers N220792W, N220792S, N220792U or N220792E.

This printhead comes with the hose barbs which can easily be removed if needed.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Technical Specifications

- Size: 63 x 62.4 x 16,2 mm (excluding cables)
- Number of Nozzles: 2 x 192 nozzles
- Nozzle Spacing within a row: 0,1693 mm
- Nozzle spacing row to row: 0.529 mm
- Temperature Control: Integrated Heater and Thermistor
- Operator Temperature range: Up to 60° C
- Drop Volume Range: Binary mode: 7pl / Grey-scale mode: 7-35 pl
- Jetting Frequency: Up to 30 kHZ
- Surface tension: 28-35nM/m
- Viscosity range: 10-12 mPas
- Grey scale: 4 levels
- Number of ink ports: 2 x dual
- Life: 100 billion actuations per nozzle

This printhead carries a manufacturer warranty.

Country of origin : Japan

Printer compatibility

• Anajet mPower
• Anajet MPower MP5i
• Anajet MPower MP10i
• CET Color X-Press 500Q
• Digitex Gunsjet SF-1914
• Digitex Gunsjet SR-1808
• Digitex Gunsjet SR-2508
• Digitex Gunsjet SR-3208
• Digitex Gunsjet UF4547
• Durst Omega 1
• Durst Omega 2
• DYSS Apollo GF2616-08F
• DYSS Apollo GF2616-10FFW
• DYSS Apollo GF2616-10FRW
• DYSS Apollo GF2616-12F
• DYSS Apollo GF2616-12S
• DYSS Apollo GF2616-14SFW
• DYSS Apollo GF2616-14SRW
• DYSS Apollo GF2616-16F
• DYSS Apollo GF2616-16SFWFV
• DYSS Apollo GF2616-16SRWRV
• DYSS Apollo GH1600-08F
• DYSS Apollo GH1600-08SF
• DYSS Apollo GH1600-08SR
• DYSS Apollo GH1600-10FM
• DYSS Apollo GH1600-12S
• DYSS Apollo GH1600-12SFWFV
• DYSS Apollo GH2200-08F
• DYSS Apollo GH2200-08SF
• DYSS Apollo GH2200-08SR
• DYSS Apollo GH2200-10FM
• DYSS Apollo GH2200-12S
• DYSS Apollo GH2200-16SFWFV
• DYSS Apollo GH2600-08F
• DYSS Apollo GH2600-08SF
• DYSS Apollo GH2600-08SR
• DYSS Apollo GH2600-10FM
• DYSS Apollo GH2600-12S
• DYSS Apollo GH2600-12SFWFV
• Gandy Digital Domin8tor
• Agfa Jeti Titan X
• Agfa Jeti 3020 Titan
