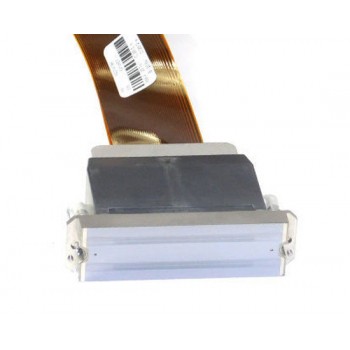

Ricoh L5160 Printhead

Ricoh L5160 Printhead

This printhead is suitable for Ricoh L5160 based printers. This is the original Ricoh part.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Technical Specifications

• Size: 89(W) × 69(D) × 24.51(H) mm (3.5" × 2.7" × 1.0") excluding cables & connectors
• Number of Nozzles: 1,280
• Nozzle spacing (Within a row): 0,1693 mm/row
• Nozzle spacing (Row to row distance): 0.55 mm
• Method: Piston pusher with metallic diaphragm plate
• Drop volume: Binary mode : 7pl / Grey-scale mode : 7-35pl *depending on the ink
• Jetting Frequency: Binary mode : 30kHz / Grey-scale mode : 20kHz
• Compatible ink: Latex
• Country of origin : Japan
