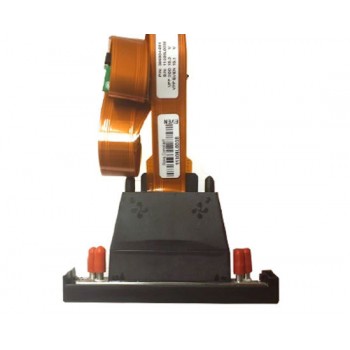

Ricoh GEN4L 15PL Printhead (Hose barb) - MH2620

Ricoh GEN4L 15PL Printhead (Hose barb) - MH2620

The Ricoh GEN4L printhead is suitable for a range of oil, water, solvent and UV printers, including the original D.Gen Teleios Grande, D.Gen Teleios (TJ-2600) and Teleios (TJ-3333). This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty.

This printhead is not compatible with the newer D.Gen Teleios Grande G5 or Teleios Grande/H6. These printers use Ricoh GEN5 Printhead Water (PPHRI18045).

This head comes with hose barbs. The hose barbs can be removed if printhead with o-rings is needed. We recommend to change the head cables when installing a new printhead.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Technical Specifications
- Size: 13,2 x 120 x 75,5 mm (excluding cables)
- Head Materials: SST, Ni and Epoxy Adhesive (direct contact with ink)
- Nozzle Plate Surface: Non-wet coating
- Number of Nozzles: 2 x 192 nozzles
- Nozzle Spacing: 0,1693 mm
- Piezo Type: D33 Stacked PZT
- Temperature Control: Integrated Heater and Thermistor
- Operator Temperature range: Up to 80° C
- Native Drop Volume: 15 pl
- Drop Volume Range: 15-45 pl
- Jetting Frequency: Up to 30 kHZ
- Life: 100 billion actuations per nozzle

Country of origin : Japan

Printer compatibility

• AmicaSystems PA32
• d.gen Teleios Grande (3333TX)
• d.gen Teleios (TJ-2600)
• d.gen Teleios Grande (TJ-3333)
• d.gen Teleios XL (XL2600)
• d.gen Artrix GTII

Product specifications
Connection : Hose Barb
Type : Printheads
