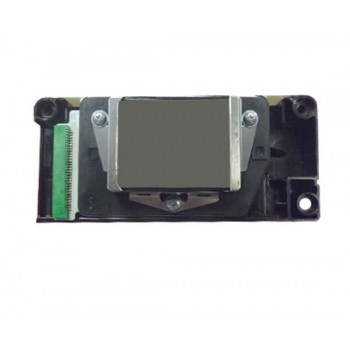

VJ-1604 Print Head Assy - DF-49684

VJ-1604 Print Head Assy - DF-49684

This VJ-1604 printhead is suitable for Mutoh ValueJet printer series printers. This original Mutoh printhead is solvent based and has a 24 digit head ID. Please refer to DF-49029 for the 40 digit head ID water based Mutoh printhead.

The VJ-1604 printhead has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.

The VJ-1604 printhead is either used in 4-colours (2 channels per colour) and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for this print head is 8 kHz.

This generation of printheads allows fast speed, high resolution printing with eco-solvent and mild solvent inks. This VJ-1604 original printhead is delivered in a sealed Mutoh package. Mutoh part number for this print head is DF-49684.

We recommend to change the head cables when installing a new printhead.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Product Specifications

• Technology: Micro-Piezo
• Native resolution: 1440 dpi
• Min. Droplet Size: 1.5 pico litre
• Max. Droplet Size: 21 pico litre
• Tot. Amount of Nozzles: 1440 (8 lines x 180 nozzles)
• Firing Frequency: 8 kHz
• Ink Compatibility: eco-solvent and mild solvent

Printer compatibility

• A-Tex Ultrajet S1500E
• A-Tex Ultrajet S1625E
• Mutoh RJ-900C (Drafstation)
• Mutoh RJ-900X (Drafstation)
• Mutoh RJ-901C (Drafstation Pro)
• Mutoh RJ-901M (Drafstation Pro)
• Mutoh RJ-901X (Drafstation Pro)
• Mutoh Valuejet 1204
• Mutoh Valuejet 1304
• Mutoh Valuejet 1304W
• Mutoh Valuejet 1604
• Mutoh Valuejet 1604W
• Mutoh Valuejet 1614
• Mutoh Valuejet 1604X
• Xerox 7142
