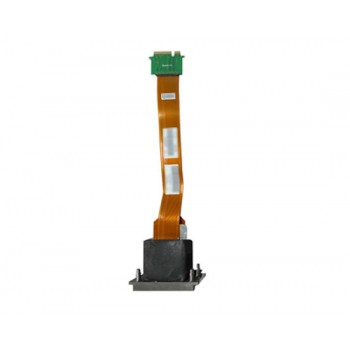

TX400-1800D Head 1 Assy - M011941

TX400-1800D Head 1 Assy - M011941

This Head 1 Assy is suitable for Mimaki TX400-1800

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Product Specifications

• Size: 63 x 63 x 16,2 mm (excluding cables)
• Head Materials: SST, Ni and Epoxy Adhesive
• Nozzle Plate Surface: Non-coated SST
• Number of Nozzles: 2 x 192 nozzles
• Nozzle Spacing: 0,1693 mm
• Piezo Type: D33 Stacked PZT
• Temperature Control: Integrated Heater and Thermistor
• Operator Temperature range: Up to 60° C
• Native Drop Volume: 7 pl
• Drop Volume Range: 5-25 pl with greyscale
• Jetting Frequency: Up to 30 kHZ
• Life: 100 billion actuations per nozzle
• This printhead carries a manufacturer warranty.
• Country of origin : Japan

Printer compatibility

• Mimaki TX400-1800B
• Mimaki TX400-1800D
