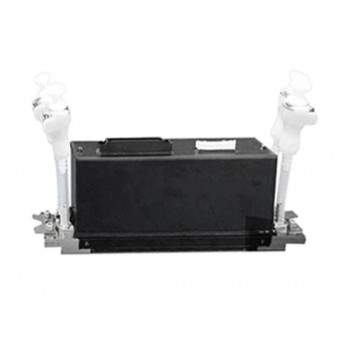

Kyocera Inkjet Printhead KJ4B-0300 - Standard

Kyocera Inkjet Printhead KJ4B-0300 - Standard

This Kyocera KJ4B-0300 is designed for high speed printing with water-based inks, in 600 dpiwith a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.The Kyocera KJ4B-QA is equipped with internal filters to preventparticles to reach the nozzle plate and an internal heater that adjusts the temperature. We recommend to change the head cables when installing a new printhead.

The Kyocera KJ4B-0300printhead is available in 3 different models:
- standard for all printers other than MS and EFI Reggiani
- MS printers including the head cable
- EFI Reggiani printers including the head cable

Please select the printhead model carefully as they are not interchangeable.


The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Specifications

• Ink Type:  Aqueous Ink
• Dimensions: 200 × 36 × 68.5mm
• Dry Weight: 540g
• Total Nozzles:2.656
• Standard Resolution: 300 x 300dpi
• Print Width: 112mm
• Max. Drive Frequency: 30kHz
• Drop Volume: 5, 7, 12 and 18pl
• Max. Sprint Speed: 120m/min
• Typical ink viscosity: 5.0-6.0 mPa
• This printhead carries a manufacturer warranty.
• Country of origin : Japan

Printer compatibility

• Printerevolution T1800
• Printerevolution T2600
• Printerevolution T3200
• FabriVu 340
• Hanway Highjet 2500B
• EFI Reggiani BLAZE
