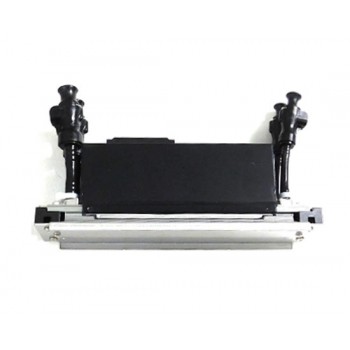

Kyocera Inkjet Printhead KJ4A-0300

Kyocera Inkjet Printhead KJ4A-0300

This original Kyocera KJ4A-0300 printhead is designed for high speed single-pass applications with printers using aqueous ink, multi-pass using UV inks. It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 4pl at 158 m/min by making use of 2,656 nozzles arranged across 112.35 mm wide print swathe. We recommend to change the head cables when installing a new printhead.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Specifications

• Ink Type:  UV ink
• Dimensions: 200 × 36 × 61.4mm
• Dry Weight: 540g
• Total Nozzles: 2.656 (2x 1328)
• Standard Resolution: 300 x 300dpi
• Print Width: 112.35mm
• Max. Drive Frequency: 30kHz
• Drop Volume: 4, 6, 10 and 14pl
• Max. Sprint Speed: 158m/min
• Typical ink viscosity: 7.0-7.5 mPa
• This printhead carries a manufacturer warranty.
• Country of origin : Japan

Printer compatibility

• Handtop HT2500UV HR8
• Handtop HT3200
• Polaroid T-REX
• Imprimo Titanium UV Flatbed
