Konica KM1024i MAE-C 14PL

Konica KM1024i MAE-C 14PL

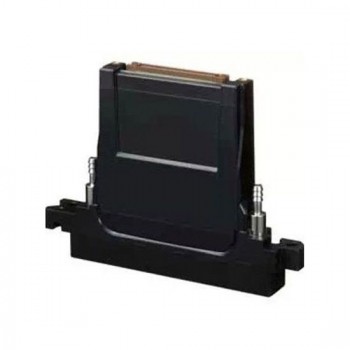

The Konica Minolta KM1024i MAE-C printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta KM1024i MAE-C printhead offers a Maximum Drive Frequency of 27kHz, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing.

Environmentally-considerate Approved Green Product
The Konica Minolta KM1024i MAE-C printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series. In addition, the nozzle unit surface area is the same as that of the KM1024 Series. We recommend to change the head cables when installing a new printhead.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Specifications
• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 14 pico litre
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Firing Frequency: 27 kHz
• Ink Compatibility: Water Based Inks
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

This printhead carries a manufacturer warranty. Country of origin : Japan

Printer compatibility

• Human Digital Technology QP-Jet
• Konica Nassenger Pro 120
• Agfa Avinci CX3200
