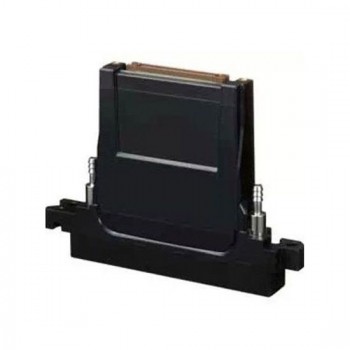

Konica KM HS1000 Printhead

Konica KM HS1000 Printhead

The Konica Minolta KM HS1000 30PL printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. This printhead offers a Maximum Drive Frequency of 27kHz, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing. This printhead can be used as a replacement of the Konica Minolta KM1024i LHE. We recommend to change the head cables when installing a new printhead.

Environmentally-considerate Approved Green Product
This printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Specifications
• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 30 pico litre
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Firing Frequency: 27 kHz
• Drive Voltage: 13+-3V
• Ink Compatibility: UV (White)
• Heater: integrated
• Dimensions: W131mm x D17mm x H94mm
• Weight: Approx. 150g

This printhead carries a manufacturer warranty. Country of origin : Japan
