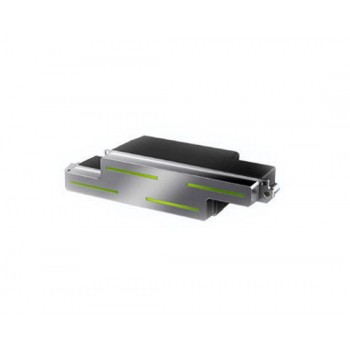

Epson S3200-U1 Printhead

Epson S3200-U1 Printhead

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Product Specifications

• Technology : PrecisionCore Technology
• Ink Type : UV/Eco Solvent
• Width x Depth x Height : 150.4 × 30 × 52 mm
• Weight: 235 g
• Number of nozzle: 3200 (Net: 2840)
• Nozzle pitch / nozzle row : 1/300inch
• Nozzle rows : 2 rows
• Nozzle Resolution : 300 npi/row 600 npi/2 rows
• Max. number of color inks : 2 colors
• Effective print width : 120.2 mm (4.73 inches)
• Droplet ejection performanceViscosity range : 8-11mPa.s

                    - Binary : 3.2pl 48 kHz
                    - 3 levels grey scale : 3.2,5,10pl

• Ink recirculation: reservoir circulation
• Internal Heater: NO
• Positioning Mechanism: reference hole
• Country of origin: Japan
