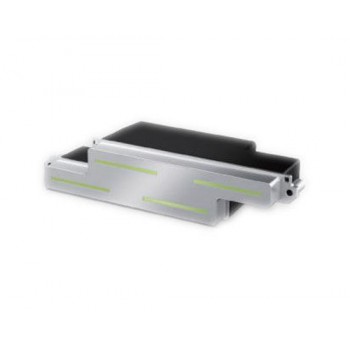

Epson S3200-A1 Printhead - S3200-A1

Epson S3200-A1 Printhead - S3200-A1

Epson S3200-A1 printhead provides high productivity, high image quality and head expandability. With maximum 4.73 inch-wide MEMs, this head series is equipped with ink circulation mechanism. It is suitable for Aqueous ink.  We recommend to change the head cables when installing a new printhead.

- Epson's unique Variable Sized Droplet Technology (VSDT) delivers smooth gradation by freely control to eject the droplet volume.

- The wide printing width of 120.2 mm (4.73 inches) is excellent for high production. Minimum-pass printing is possible because there is very little variation between nozzles. Data Sheet Inkjet Head S3200

- Highly scalable S-shape design can realize space-saving for increasing productivity and multi-colours. Contributes to miniaturize the printer.

- A high-precision positioning hole allow the user to replace the head quickly and efficiently without further adjustments.

- PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

PrecisionCore Technology :

MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi /2 rows of nozzles). It ontributes to compact, high speed, high quality, and high image quality. The precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.

Specifications :

• Ink Type : Aqueous.
• Type : PrecisionCore micro TFP printhead
• Weight : 235 g
• Width x Depth x Height: 150.4 × 30.0 × 52.0 mm
• Number of nozzle : 3200 (Net: 2840)
• Nozzle pitch/ nozzle row : 1/300 inch
• Nozzle rows: 2 rows
• Nozzle Resolution : 600npi (300npi x 2 rows)
• Effective print width : 120.2 mm (4.73 inches)
• Maximum usable ink color: 2 colours
• Droplet ejection performance : Viscosity range: 3-4 mPa.s

                   -Binary : 7 pl at 48kH
                   -4 levels greyscale : 3.3, 7, 13 pl at 24 kHz

• Ink recirculation: Common channel recirculation
• Positioning mechanism: Reference hole
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
