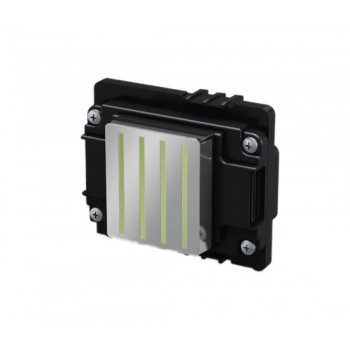

Epson I3200-A1 Water Printhead - I3200-A1 HD

Epson I3200-A1 Water Printhead - I3200-A1 HD

The Epson I3200-A1 Water is a cost-effective 1.33 inch-wide providing higher nozzle resolution than the existing I3200-A1 with up to 1200 nozzles per inch. This printhead is suitable for water based inks.

Structurally, the Epson I3200-A1 and Epson I3200-A1 HD prinheads are the same heads, both with 8 rows of 400 nozzles.

But the two heads are absolutely NOT interchangeable, each printer can only run the type of head for which it was designed.

- The Epson I3200 has support for 4 colours, so there are 4 inputs (nipples) on the manifold to which the dampers can be connected, and each colour is emitted by a pair of nozzle rows.

- The Epson  i3200 HD has support for 8 colours, so there are 8 inputs (nipples) on the manifold to which the dampers can be connected, and each colour is emitted by a single nozzle row.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Specifications :

• Ink Type : Aqueous
• Type : PrecisionCore MicroTFP printhead
• Width x Depth x Height: 69.1 x 59.5 x 36.7 mm
• Weight : 78g
• Number of nozzle : 3200
• Nozzle pitch/nozzle row : 1/300 inch
• Nozzle rows: 8 rows
• Nozzle Resolution : 300 npi/row, 600 npi/2 rows, 1200 npi/4 rows
• Max. number of colour inks : 8 colours
• Effective print width : 33.8 mm (1.33 inches)
• Droplet ejection performance :

                      - Binary : 6 plat 43.2 kHz
                      - 3 levels grey scale : 6.3, 12.3 pl at 21.6 kHz
                      - 4 levels grey scale 3.8, 6.1, 9.4 pl at 21.6 kHz

• Viscosity range : 2.2-3.8 mPa·s
• This printhead carries a manufacturer warranty.
• Country of origin : Japan

Printer compatibility

• Yintech DPM440MK
• Yintech DPM560MK
• Yintech DPM660MK
• Gaole GL330
• Gaole GL330C
• Gaole GL440
• Gaole GL440C
