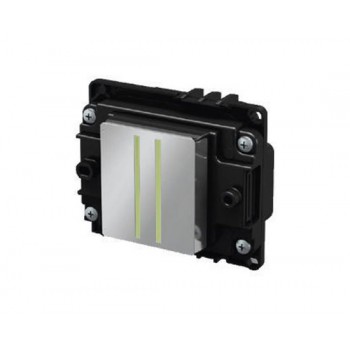

Epson i1600-E1 Printhead

Epson i1600-E1 Printhead

The Epson i1600-E1 1.33 inch-wide MEMs printhead provides high productivity and high image quality with 600dpi high-density resolution. This printhead is compatible with ecosolvent inks. It is unlocked and should fit most i1600-E1 based printers. We recommend to change the head cables when installing a new printhead.

Specifications :

• Ink Type : Eco-solvent
• Type : PrecisionCore MicroTFP printhead
• Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
• Weight : 80g
• Number of nozzle : 1600
• Nozzle pitch/nozzle row : 1/300 inch
• Nozzle rows: 4 rows
• Nozzle Resolution : 300 noi/row 600 npi/2 rows
• Max. number of colour inks : 4 colours
• Effective print width : 33.8 mm (1.33 inches)
• Droplet ejection performance :

               Binary : 5pl at43.2kHz
               3 levels grey scale : 6, 12.5 pl at 21.6 kHz
               4 levels grey scale 3.8, 6.2, 9.3 pl at 21.6 kHz

• Viscosity range : 5-7 mPa･s
• Positioning mechanism: Reference hole
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
