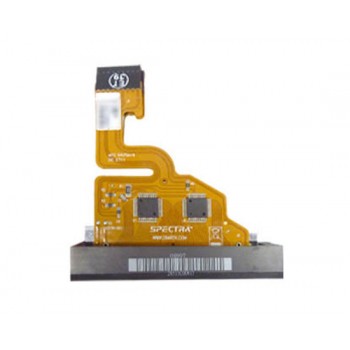

Spectra Galaxy JA 256/30 AAA

Spectra Galaxy JA 256/30 AAA

The Spectra Galaxy JA 256/30 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 900 dpi. Two electrically independent piezoelectric slices, each with 128 addressable channels and two separate connecting cables, are combined to provide a total of 256 nozzles. The nozzles are arranged in a single line, at a native 0.010 inch distance between nozzles.
The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.

These Spectra heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.

NOTE: This print head is suitable for VUTEk PressVu 180/600 and 200/600 printers. Note that the print head is supplied in the original Spectra sealed packaged and doesn't include the metallic base manufactured by VUTEk. This part can be reused from old heads.

NOTE: On the VUTEk PressVu 200/600, this print head is used for the colour ink channel. If you need the print head for the white ink channel on the VUTEk PressVu 200/600, please refer to PPHSPGA50 (Spectra Galaxy JA 256/50 AAA)

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature

Specifications
- Technology: Piezo Electric
- Max. Resolution: Up to 900dpi
- Cal. Droplet Size: 28 pico litre
- Adj. Range for Droplet Size: 25 - 30 pico litre
- Tot. Amount of Nozzles: 256 (128 per slice)
- Nozzle Spacing: 254 microns (0.010 in.)
- Nozzle Diameter: 36 microns
- Firing Frequency: 20 kHz
- Operating Temperature: up to 90°C
- Ink Compatibility: Organic solvents, UV curables, Aqueous

This printhead carries a manufacturer warranty.

Country of origin : Japan
